A comprehensive update to the technical and stylistic workings of an industry icon.
With a history dating back to 2005, the second generation GB5 carries on the spirit of the GB5 line: a machine rooted in classical European design, coupled with cutting edge performance. The new GB5 S features a revamped visual identity which modernizes the machine without sacrificing the look, premium feel, or dynamic elegance. The two red lilies on the side shields recall the company’s Florentine heritage while the front panel has been redesigned to increase group visibility. The second generation GB5 is the first series of La Marzocco machines equipped with a water sensor that measures the conductivity and hardness of water as it enters the machine. This information allows the user to monitor water quality and verify filtration performance without the need for additional testing tools.
Highlights
Water Sensor
Measures the conductivity and hardness of water as it enters the machine.
pro app compatible
The Pro-App will give the barista control over the day to day functions of the machine, including adjusting dose, coffee boiler temperature, and usage statistics.
USB
Making it possible to update the firmware.
Essential features
dual boilers
Separate boilers optimize espresso brewing and steam production.
dual pid (coffee and steam)
Allows you to electronically control coffee and steam boiler temperature.
insulated boilers
Reduce energy consumption while contributing to temperature stability.
piero group caps – av, abr
Re-engineered internal water path and flow-meter positioning that increase temperature stability.
saturated groups
Ensure unsurpassed thermal stability, shot after shot.
pro touch steam wands – special order
High performing steam wands that are cool to the touch.
digital display
Intuitive programming makes it easy to adjust machine parameters.
programmable doses – av, abr
Auto-volumetrics ensure repeatability and consistency in high-volume settings.
integrated scales – abr only
Precision scales built in the drip tray with the Drip Prediction technology provide a new level of consistency.
24v electronics
New generation of electronics for improved reliability and machine diagnostics.
easy rebuild steam valve
Engineered so the valve can be serviced directly from the front of the machine without needed to be removed.
dimmable barista lights – av, abr
3-stage customizable intensity led lights for Eco, On and Brewing modes.
eco mode
Can be programmed to enter stand-by mode, improving energy efficiency.
cup warmer – special order
Maintain espresso and cappuccino cups evenly heated at a proper temperature.

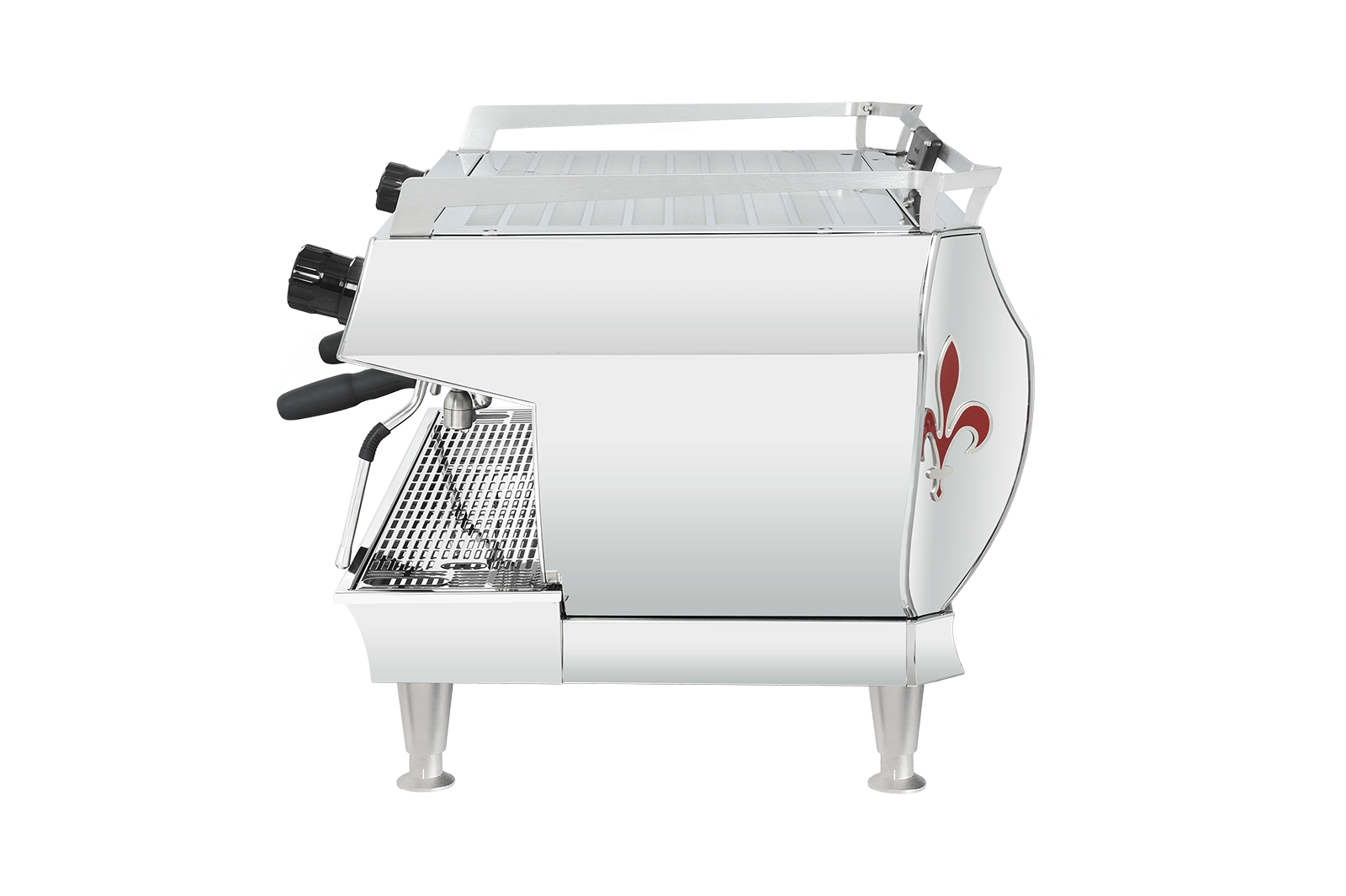

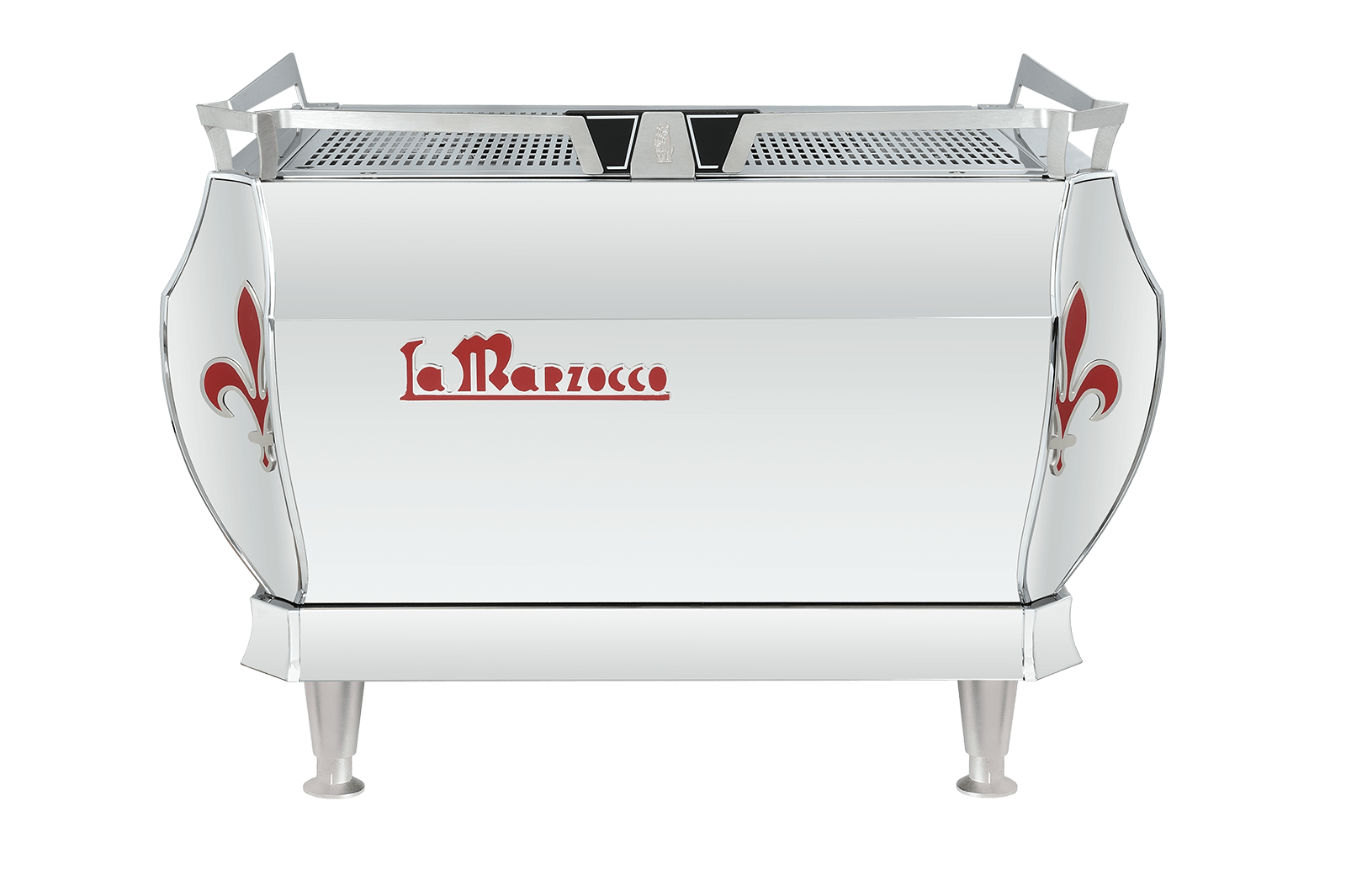

high legs – special order
Makes it easier to access beneath the machine.
personalized colors – special order
Customizable colors based on the RAL color system, on request.
technical specifications
| Specifications | 2grp | 3grp | 4grp |
|---|---|---|---|
| Height (in) | 21.4 | 21.4 | 21.4 |
| Width (in) | 29 | 38.5 | 48 |
| Depth (in) | 25.2 | 25.2 | 25.2 |
| Weight (lbs) | 150 | 171 | 198 |
| Voltage (VAC, phase, Hz) | 208-240, 1, 60 | 208-240, 1, 60 | 208-240, 1, 60 |
| Amperage (A) | 30 | 50 | 50 |
| Element Wattage (W) | 5200 | 6800 | 8300 |
| Coffee Boiler (liters) | 3.4 | 5 | 2 x 3.4 |
| Steam Boiler (liters) | 7 | 11 | 15 |
| Certifications: UL-197, NSF-8, CAN/CSA-C22.2 No. 109 |
